4. Process Management
프로세스 생성
부모 프로세스가 자식 프로세스 생성
프로세스의 트리(계층 구조) 형성
프로세스는 자원을 필요로 함
- 운영체제로부터 받는다
- 부모와 공유한다
자원의 공유
- 부모와 자식이 모든 자원을 공유하는 모델
- 일부를 공유하는 모델
- 전혀 공유하지 않는 모델 (원칙)
수행(Execution)
- 부모와 자식은 공존하며 수행되는 모델
- 자식이 종료될 때까지 부모가 기다리는 모델
🟡 주소 공간
- 자식은 부모의 공간을 복사함 (binary and OS data)
- 자식은 그 공간에 새로운 프로그램을 올림
유닉스의 예
- fork() 시스템 콜이 새로운 프로세스를 생성
- 부모를 그대로 복사 (OS data execpt PID + binary)
- 주소 공간 할당
- fork 다음에 이어지는 exec() 시스템 콜을 통해 새로운 프로그램을 메모리에 올림
Copy-on-write(COW) : write가 발생했을 때(내용이 바뀔 때) copy한다
프로세스 종료
프로세스가 마지막 명령을 수행한 후 운영체제에 이를 알려줌(exit)
- 자식이 부모에게 output data를 보냄 (via wait)
- 프로세스의 각종 자원들이 운영체제에게 반납됨
부모 프로세스가 자식의 수행을 종료시킴 (abort)
- 자식이 할당 자원의 한계치를 넘어섬
- 자식에게 할당된 태스크가 더이상 필요하지 않음
- 부모가 종료(exit)하는 경우
- 운영체제는 부모 프로세스가 종료하는 경우 자식이 더 이상 수행되도록 두지 않는다
- 단계적인 종료

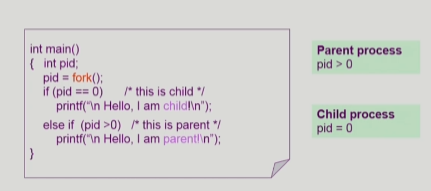

fork() 시스템 콜
A process is created by the fork() system call
- creates a new address space that is a duplicate of the caller
int main()
{ int pid;
pid = fork();
if (pid == 0) /* this is child */
printf("\n Hello, I am child!\n");
else if (pid > 0) /* this is parent */
printf("\n Hello, I am parent!\n");
}

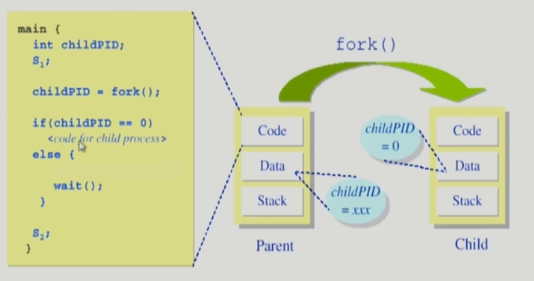

fork() 실행 → 자식은 부모 프로세스를 복사하고 fork() 이후부터 코드를 수행
pid로 부모와 자식 프로세스 구분
exec() 시스템 콜
어떤 프로그램을 완전히 새로운 프로세스로 태어나게 함
A process can execute a different program by the exec() system call
- replaces the memory image of the caller with a new program
int main()
{ int pid;
pid = fork();
if (pid == 0) /* this is child */
{
printf("\n Hello, I am child!\n");
execlp("/bin/date", "/bin/date", (char*)0);
}
else if (pid > 0) /* this is parent */
printf("\n Hello, I am parent!\n");
}
한번 exec하면 다시 돌아올 수 없음
execlp - 프로그램이름 2번, args
wait() 시스템 콜
프로세스 A가 wait() 시스템 콜을 호출
- 커널은 child가 종료될 때까지 프로세스 A를 sleep 시킨다 (block 상태)
- Child process가 종료되면 커널은 프로세스 A를 깨운다 (ready 상태)
exit() 시스템 콜
프로세스의 종료
- 자발적 종료
- 마지막 statement 수행 후 exit() 시스템 콜을 통해
- 프로그램에 명시적으로 적어주지 않아도 main함수가 리턴되는 위치에 컴파일러가 넣어줌
- 비자발적 종료
- 부모 프로세스가 자식 프로세스를 강제 종료시킴
- 자식 프로세스가 한계치를 넘어서는 자원 요청
- 자식에게 할당된 태스크가 더 이상 필요하지 않음
- 키보드로 kill, break 등을 친 경우
- 부모가 종료하는 경우
- 부모 프로세스가 종료하기 전에 자식들이 먼저 종료함
- 부모 프로세스가 자식 프로세스를 강제 종료시킴
프로세스 간 협력
독립적 프로세스 (independent process)
- 프로세스는 각자의 주소 공간을 가지고 수행되므로 원칙적으로 하나의 프로세스는 다른 프로세스의 수행에 영향을 미치지 못함
협력 프로세스 (Cooperating process)
- 프로세스 간 협력 메커니즘을 통해 하나의 프로세스가 다른 프로세스의 수행에 영향을 미칠 수 있음

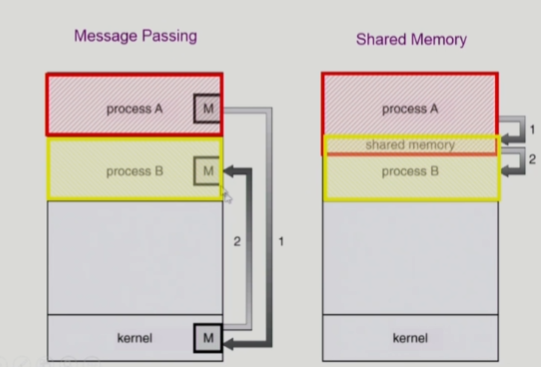

프로세스 간 협력 메커니즘 (IPC: Interprocess Communication)
- 메시지를 전달하는 방법
- message passing: 커널을 통해 메시지 전달
- 주소 공간을 공유하는 방법
- shared memory: 서로 다른 프로세스 간에도 일부 주소 공간을 공유하게 하는 shared memory 메커니즘이 있음
- thread: thread는 사실상 하나의 프로세스 → 프로세스 간의 협력으로 보기는 어렵지만 동일한 process를 구성하는 thread들 간에는 주소 공간을 공유하므로 협력이 가능
Message Passing
🟡 Message system
프로세스 사이에 공유 변수(shared variable)를 일체 사용하지 않고 통신하는 시스템
Direct Communication
- 통신하려는 프로세스의 이름을 명시적으로 표시
Indiret Communication
- mailbox (또는 port)를 통해 메시지를 간접 전달
공통: 운영체제 커널을 통해 전달한다
